MM/MC Phono preamp with line & USB outputs

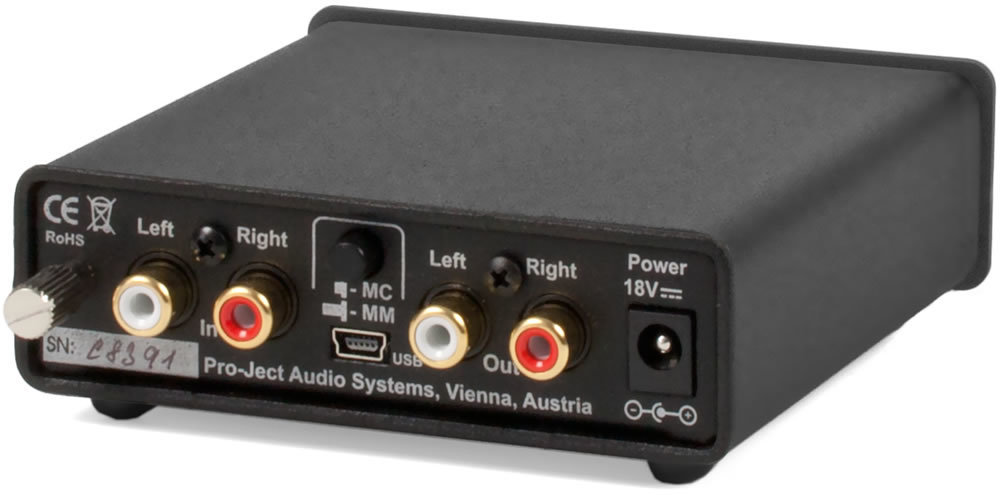

• Preamplifier for MM or MC with switch on rear panel
• NEW! „green“ DC power supply (< 1 watt standby power)
• Precise RIAA equalisation
• High quality A/D conversion with USB out to PC/Mac
• Compatible with Windows®, MacOS® & Linux
• SMD technology for shortest signal paths
• Output stage with ultra-low impedance
• Gold-plated RCA sockets
• DC power supply (< 1 watt standby power)

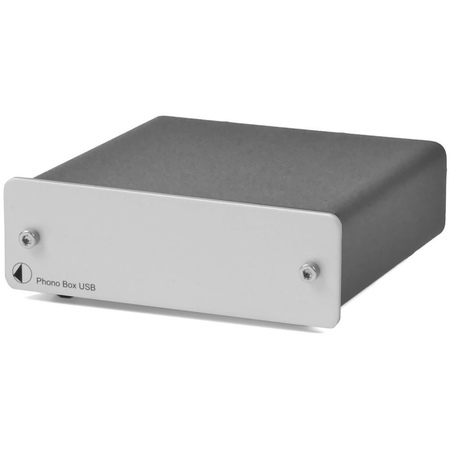

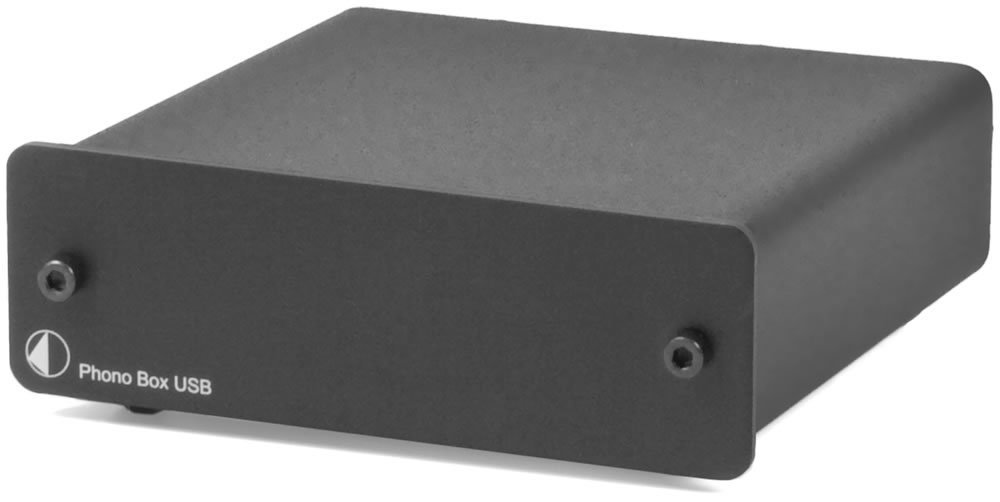

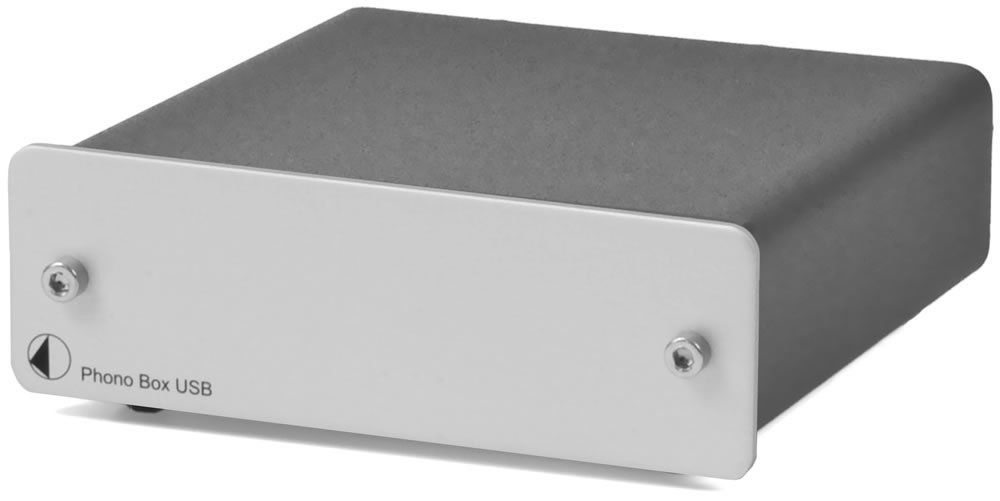

• Available in black and silver
Phono Box USB: Top specialist for listening & recording of vinyl records!
Phono Box USB is an ideal phono preamplifier for both your hifi system and vinyl recording to PC or Mac. MM and MC cartridges will be welcome. The analogue output of Phono Box USB can easily be connected to a line-input (AUX,...) of your hifi and digitally via USB to your computer. Both outputs can be used simultaneously. Any professional recording software will give best results on Windows and Mac computer systems.
Technical data
|
Pro-Ject Phono Box USB
|
| Load capacitance /impedance |
MM: 47Kohms / 120pF MC: 100 ohms / 120pF |
| Gain, MM |
40dB |
| Output voltage typically |
300mV/1kHz at 3mV/1kHz (MM input) |
| Gain, MC |
60dB |
| Gain, line level input |
11dB |
| Max. output |
9,5Vrms (1kHz) |
| Noise floor, MM |
86dB (94dB - A weighted) |
| Noise floor, MC |
68dB (75dB - A weighted) |
| THD, MM/ MC |
0,01% / 0,05% |
| RIAA-equalisation curve accuracy |
20Hz - 20kHz / max. 0,5dB |
| Phono Input / line output |
1 pair RCA phono sockets |
| A/D converter |
16-Bit Delta Sigma |
| Sampling rates |
32, 44,1 and 48kHz |
| USB output |
digital serial data protocol USB 1.1 |
| Operating systems |
Windows®, MacOS® & Linux |
| Standby power consumption |
< 1 Watt |
| Dimensions W x H x D |
103 x 36 x 103 (109 mm with sockets) |
| Weight |
540g
|
