RIAA korjain MM (moving magnet) ja MC (moving coil) äänirasioille

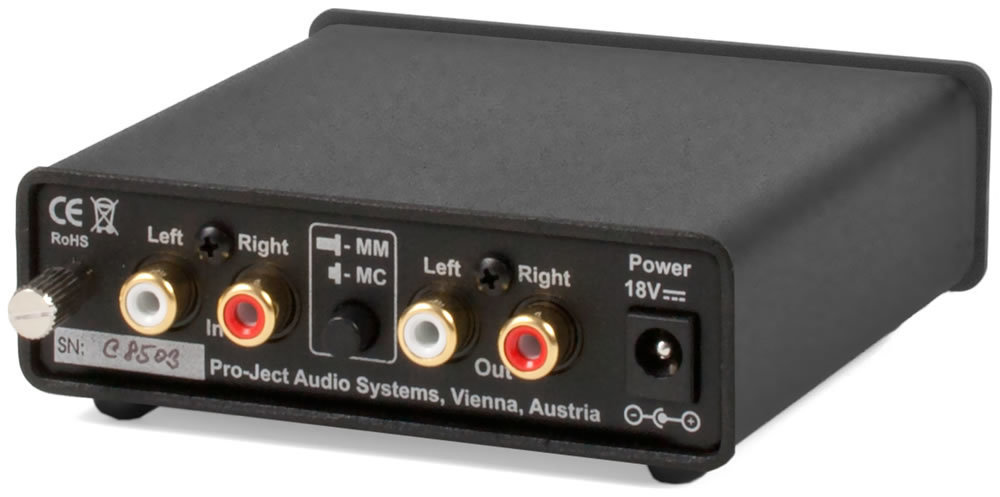

• Preamplifier for MM or MC with switch on rear panel
• Best buy classic
• DC power supply (< 1 watt standby power)
• Precise RIAA equalisation
• Low noise ICs
• Output stage with ultra-low impedance
• Gold-plated RCA sockets
• Small size for installation near record player

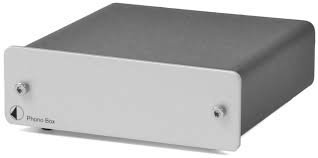

• Available in black and silver
Phono Box: Best buy classic for pure vinyl listening pleasure!
Today, many amplifiers do not have a specific phono cartridge input. Phono Box is an ideal phono preamplifier for these hifi system and accepts both MM and MC cartridges. The analogue output of Phono Box can easily be connected to a line-input (AUX,...) of your amplifier.
Technical specifications
|
Pro-Ject Phono Box
|
| Input impedance, MM |
47kohms/120pF |
| Input impedance, MC |
100ohms/120pF |
| Gain, MM |
40dB |
| Output voltage typically |
300mV/1kHz at 3mV/1kHz (MM input) |
| Gain, MC |
60dB |
| Output voltage typically |
300mV/1kHz at 0,3mV/1kHz (MC input) |
| Max. output |
9,5V (1kHz) |
| Noise floor, MM |
86dB (94dB - A weighted) |
| Noise floor, MC |
68dB (75dB - A weighted) |
| THD, MM |
0,01% |
| THD, MC |
0,05% |
| RIAA-equalisation curve accuracy |
20Hz - 20kHz / max. 0,5dB |
| Outboard power supply |
18V/200mA DC, |
| |
suitable for your country's mains supply |
| Standby power consumption |
< 1 watt |
| Dimensions W x H x D |
103 x 36 x 103 (109 mm with sockets) |
| Weight |
540g |
