Description 2-way vented-box system
Decoupled Carbon Dome™ tweeter
Continuum™ cone bass/midrange, Flowport™
Drive units : 1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
2x ø130mm (5 in) Continuum cone bass / midrange
Frequency range (-6dB) -6dB at 48Hz and 33kHz
Frequency Response -3dB 70Hz - 28kHz ±3dB
Sensitivity 87dB spl (2.83VRMS, 1m)
Harmonic distortion 2nd and 3rd harmonics (90dB, 1m)
<1% 100Hz - 22kHz
<0.5% 200Hz - 22kHz
Nominal impedance 8Ω (minimum 4.3Ω)
Recommended amplifier 30W - 120W into 8Ω on unclipped power programme
Height: 166.5mm (6.6 in), Width: 480mm (18.9 in), Depth: 260mm (10.2 in) cabinet only 275mm (10.8 in) including grille and terminals
Net weight 9.11kg (20.1 lb)

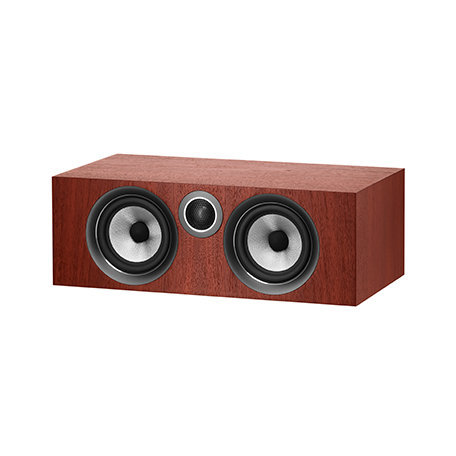

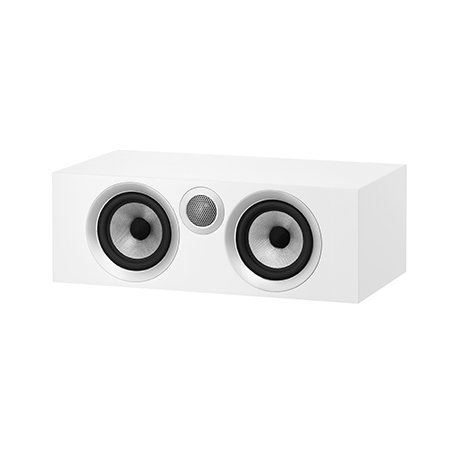

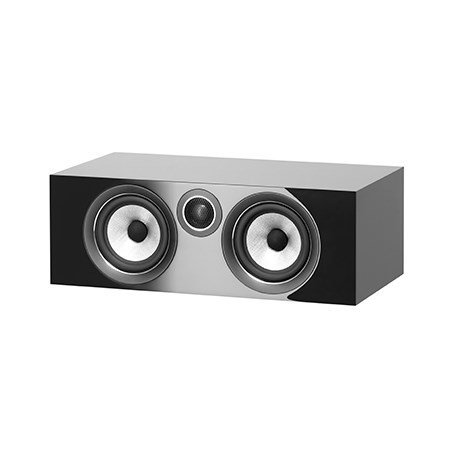

Saatavissa mustava, valkoisena ja ruusupuun värisenä (ruusupuussa aito puuviilu),
Etukankaat: valkoisessa vaalean harmaa, muissa väreissä musta
