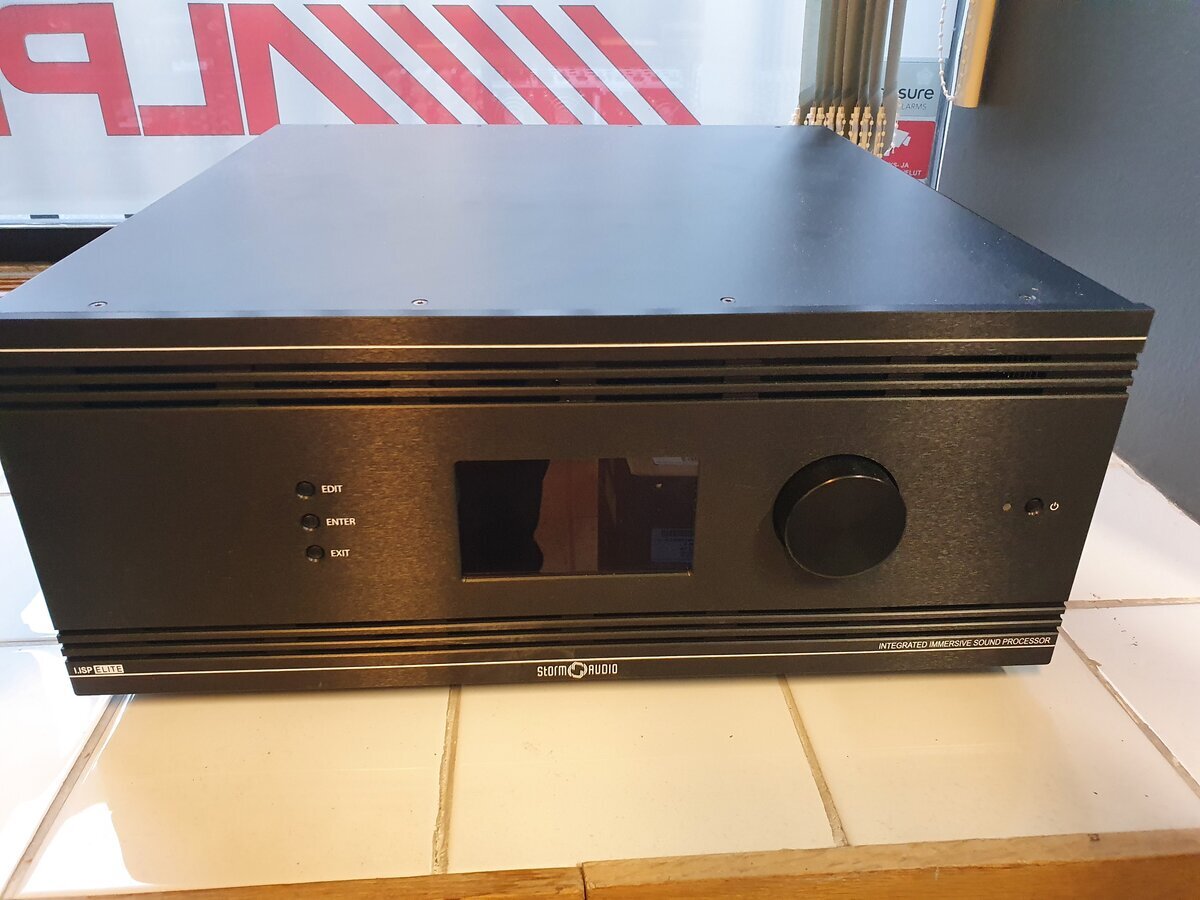

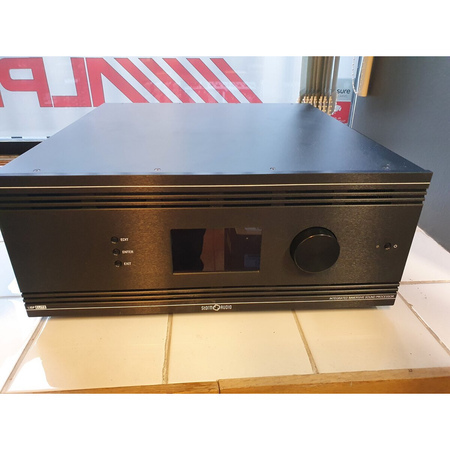

The 16-channel integrated preamp AV processor is a compact unit which shares the same proprietary platform as the ISP 3D.16 ELITE, together with the same audio processing capability. The I.ISP 3D.16.12 receiver has 12 embedded amplified channels to its disposal, with up to 200W / 8 Ohms per channel, in a 4RU unit.
The I.ISP 3D.16.12 is the perfect machine for highly integrated home cinema installs, where the technical area is limited, but there is still the need to go up to 16 channels with a high demand in performance.
The I.ISP 3D.16.12 ELITE includes:
All 3D audio formats supported (Auro-3D, Dolby Atmos and DTS:X)
StormOptimizer - room calibration, powered by Dirac Live
SphereAudio - binaural immersive sound for headphones
StormMonitoring - remote monitoring
Microphone Mini-Kit (mic + stand) - for initial room calibration and permanent remote monitoring

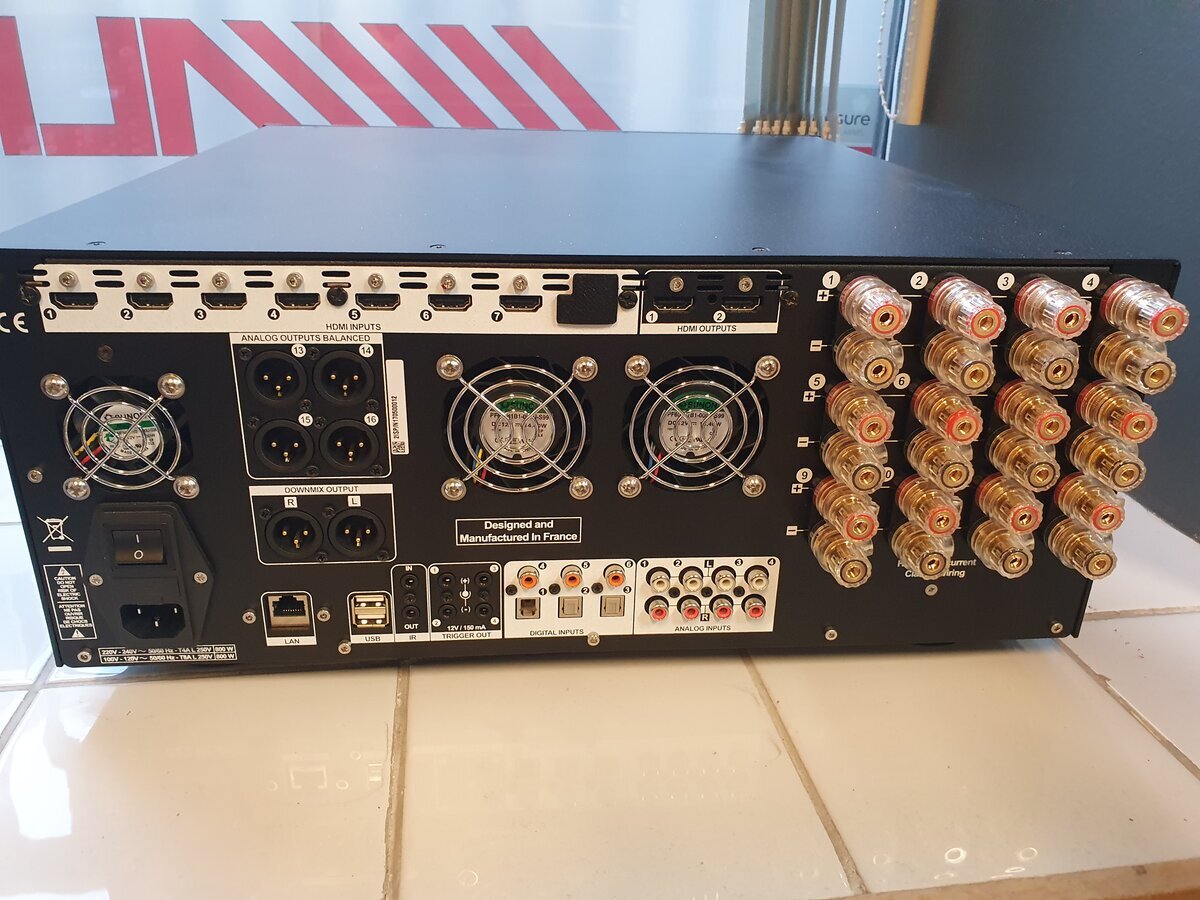

16 channels output
12 x 200W (4-8 Ohms) amplified channels (1-12)
4 channel XLR analog output (13-16)
Fully configurable speaker management
Flexible channel mapping and routing
Unlimited multi-subwoofer channels
Multi-way active and passive speaker management
7 inputs / 2 outputs HDMI sockets with 4K UHD and HDCP2.2 | HDMI2.0 support
16 channels immersive sound decoding and upmixing
6 Digital Inputs
High quality analog audio with high-grade ADC/DAC
Network and Internet based control (wired network)
Available in Home or Rack edition
